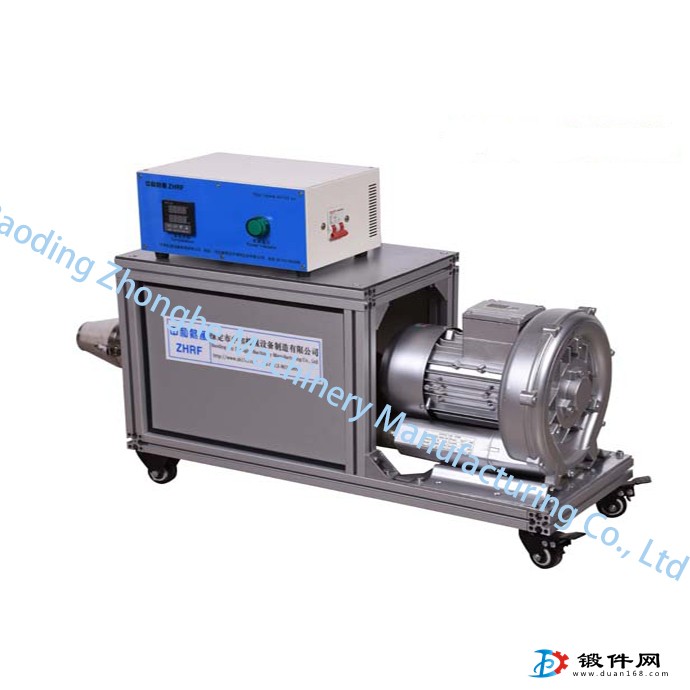

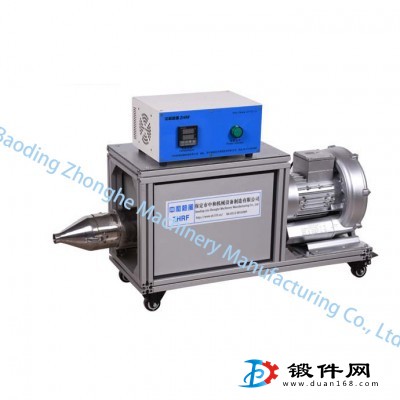

Industrial hot air dryer

Industrial hot air dryer

單價 面議

更新時間:2020-03-04 17:29

444 人已聯系

  • 商品詳情
  • 單位名稱: 保定市中和機械設備制造有限公司
  • 手機號碼: 17325290682
  • 產品名稱: Industrial hot air dryer
  • 材質型號: wulin
  • 供應地址: 河北保定清苑區發展西街320號

HWIR200G-5 high-pressure industrial hot air blower (high-pressure fan, power adjustable, digital display temperature, integrated design) suitable for food, pharmaceutical, electronics, printing, spraying, cleaning and other industries used in heating, drying and dehumidification, especially suitable for Pipeline Drying heating. Suitable for single operation or assembly line use, high thermal efficiency, uninterrupted continuous work, durable, accurate in temperature control.

Characteristic:

main features

Integrated design

The design of the control system, heating system and blowing system is especially suitable for heating and drying pipes.

Temperature control system

A solid state relay is used to control the power output and control the temperature, and the output is stable. Digital display temperature.

High wind pressure

The standard configuration is 250W high pressure fan.

Heat insulation

Double layer heat preservation.The strong machine casing makes it safe and reliable,can maintain long-term high temperature work.

Digital display temperature regulation

The air outlet is equipped with a temperature sensor, so that the machine can adjust potentiometer to achieve temperature regulation according to the work needs. It can work continuously for 24 hours at high temperature.

High heat exchange efficiency

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.

Security

The machine does not produce exhaust gas, and is environmentally friendly. It can operate continuously for 24 hours throughout the year.

Parameter table:

Classification

Item

Parameter

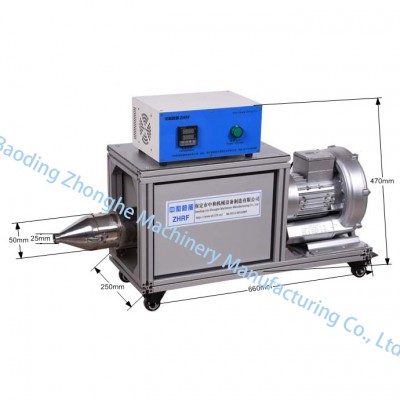

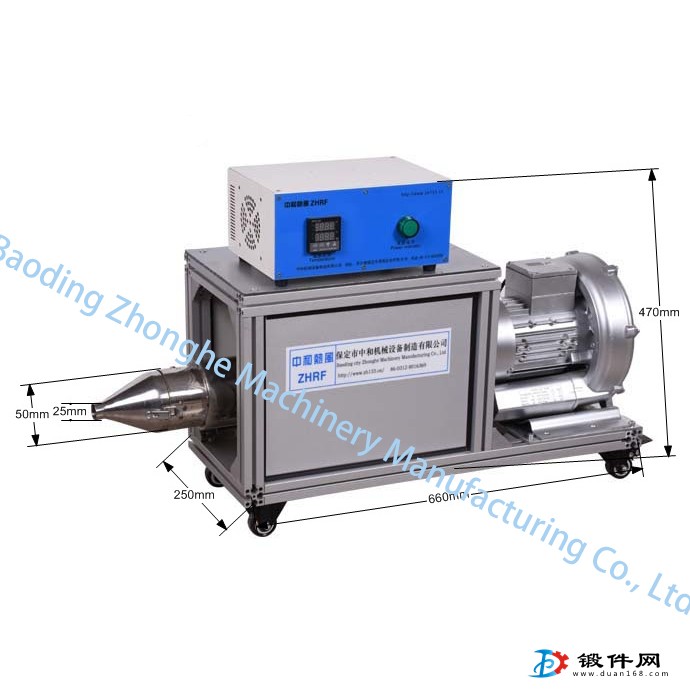

Size



Overall machine sizeL×W×H)

See picture

Outlet diameter

50mm25mm

Inlet diameter

50mm

Insulation layer

Material

Double layer heat preservation

Heater

Name

Electric hot wire

Heater power

2KW

Heating wire life

10000 hours

Power regulation

Intelligent temperature adjustment

Air intake

Blower

250W High pressure blower

Maximum wind volume

48m3/h

Full pressure

12000pa

Hot air vent

Diameter

25mm

The maximum air volume of the outlet

42m3/h

Maximum temperature of outlet

100℃

Power demand

Power demand

220V

Power

2300W

Weight

Weight

15KG
